We use professional printing main board & system,
Ensure printer work stable, High-quality printout, less maintenance
Support:
Cmyk,lc,lm,lk,llk+white+Varnish inks printing one pass,
3D embossed effect printing
varnish glossy effect printing
Photo-level uv printing quality
high drop printing
Automatic cleaning, white ink automatic stirring & circulation
4 pcs Xaar 1201 or Ricoh G5I print heads:
Jucolor CJ-UV6090Pro A1 uv printer equipped with the latest printer software system,
can support 4 pcs Xaar 1201 print heads or 4 pcs Ricoh G5I print heads. More print heads means High-quality printout and faster printing speed.

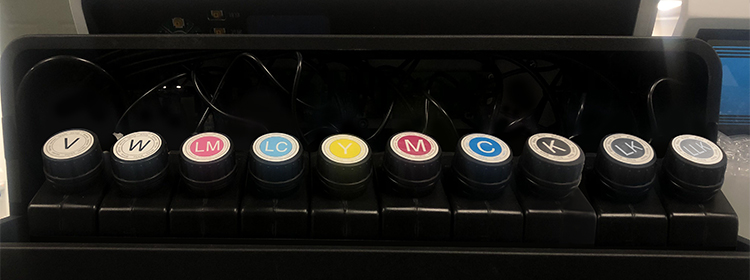

4 white+Cmyk,lc,lm,lk,llk+4 Varnish 24 colos uv inks
uv ink is oily based ink, the viscosity and particles of the ink are relatively large
Printing quality of uv inks printer is worse than eco sovlent inks photo printer
Our printer is equipped with LC, LM, LK, LLK ink, which greatly improves the quality of printing and can achieve the effect of photo quality
4 white+Cmyk,lc,lm,lk,llk+4 Varnish 24 colos uv inks
uv ink is oily based ink, the viscosity and particles of the ink are relatively large
Printing quality of uv inks printer is worse than eco sovlent inks photo printer
Our printer is equipped with LC, LM, LK, LLK ink, which greatly improves the quality of printing and can achieve the effect of photo quality
Jucolor 6090Pro model uv printer is equipped with Xaar 1201 print heads or Ricoh G5i nozzles, can suppprt high-droplet printing, the high drop printing distance can reach to 13/20mm
High-drop printing function is very practical and popular. It can print toys, cosmetic packaging, tools, pens, irregular shapes and other materials with irregular shapes or uneven surfaces. It has a very wide range of applications.
Printing distance of Epson series print heads only within 3mm, does not have high drop printing function.
At the same time, minimum dot size of Xaar 1201 print head can be 2.5pl, and minimum dot size of Ricoh G5I print head is 3pl. print quality is better than that of Epson series print heads.
Aluminum alloy integral casting fuselage structure
adopts aluminum alloy integral casting structure, which has characteristics of light weight and permanent non-deformation.
5-sided precision milling is performed by large milling machine to ensure that X-axis print heads movement without height difference, Y-axis platform moves without vibration, Z axis lifts smoothly without resistance ，
Ensure high-quality print output and provide the whole life of the printer

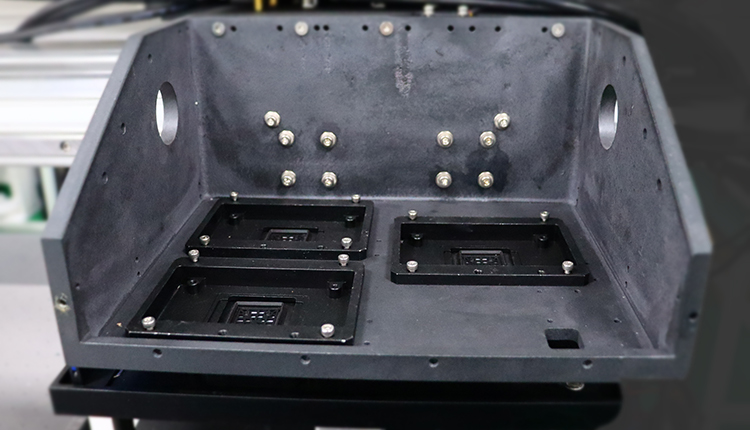

Integral aluminum alloy casting print head base
UV Printer is a high-precision device, which has extremely high precision requirements for print head base. It requires no height difference, no assembly gap, no deformation.
Print head base heating device
jucolor 6090Pro uv printer, print head base equipped with bottom heating unit, improve the fluency of uv ink and printing accuracy
Ink circuit heating device
equipped with heating fan that can continuously heat the ink tubes, improve the fluency of uv ink and improve printing accuracy
Jucolor 6090Pro A1 uv printer equipped with high-performance air-cooled uv led curing lamp, good curing effect, concentrated light, long workspan,effective trouble-free working time is more than 40,000 hours
Compared with water-cooled uv lamps, it has stability, fewer failures, and safety advantages . Water-cooled lamps, the rubber water tubes are prone to aging and cracking, water leakage, and scale blockage and then burning down UV lamp.
61*91cm/2*3 feets print size
20cm/7.87 inches max print thickness can highly meet customers printing needs.
Anti-scratch Teflon coated vacuum suction platform with size mark
Anti-scratch, anti-greasy, anti-corrosion,
With adsorption function, can firmly adsorb and fix printing material during printing process to avoid printing misalignment
Engraved ruler can quickly locate the printing position
