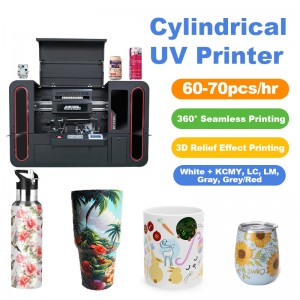

Jucolor Industry Cylinder Digital Printer with Automated Robot to load and unload
This Jucolor industrial Ricoh Head uv cylinder printer is very suitable for small batch or single-piece customized printing, such as wedding wine bottles, thermos cups, car cups, sports water cups, souvenirs, urns, lampshades, baseball bats, fishing rods, personalized gifts, etc., to meet the growing personalized needs of consumers.
| Print model | CJ-BP360Auto | Print size | Length:0-240/300mm , Diameter:42-135mm, Taper: ≤ 13° Customized available |
| Print head | 3-4* EPSON I1600-U1 3-4 * RICOH Gen5/Gen6 | Ink type & colors | Primer+W + KCMY+V W+ KCMY+LC, LM, Grey, Red+V |
| Print resolution | 720, 900,1200 DPI | Printing speed | 25-90 PCS/Hour(According to printing size) |
| bottle type | Straight-through bottle, cone-shaped bottle, cosmetic packaging bottle, wine bottle, car thermos, etc | Environmental requirements | Temperature: 15°C-33°C, relative humidity 30%-70% |
| Languages | English/Chinese | Power | 220 V |
| Ink supply | 1000 ml/bottle | Operating system | Windows 7/10/11 |
| Machine Size | 1920*1698*1060mm, 450 kg | Packing size | 2020*1800*1160mm, 615kg |
| Delivery | 7 work days after payment | Payment Terms | T/T; bank transfer, Western union |
Using Japan's Ricoh MH5340 all-metal print head, Ricoh MH5340 head adopts an all-steel structure, which has strong corrosion resistance, up to 4-6 years long working life, high stability, which greatly reduces maintenance time and cost, variable droplet technology gives it excellent printout quality,
Support 1-15/20mm millimeter high drop printing, easy and perfect printing of special-shaped products, effectively improve the customer application range, can print, cone, concave and convex and other irregular shaped cylinder object.
Jucolor CJ-BP360A Cylinder printer support 10-color (white + KCMY, LC, LM, Gray, LGrey/Red) UV curing ink to achieve instant printing and drying, which can achieve high resolution and color saturation, making the image more vivid and lasting.
Drop volume capability Variable
Jucolor CJ-BP360A Cylinder printer equipped with professional tray which achieve 360-degree seamless printing, covering the entire surface of the cylinder.
This Jucolor CJ-BP360A Cylinder printer has 3D relief effect, gloss printing effect function
The cylinder printer can print 3D relief effect, and with varnish ink, the jucolor cylinder printer can obtain varnish gloss and matte effect.
Jucolor CJ-BP360Auto Industry Cylinder printer Equipped with an editable PLC control system, it supports fully automatic loading and unloading of cylinders of different sizes and shapes.
The conveyor table transports the cylinder to the loading area. The loading robot A grabs and moves to the printing unit and then releases. The printing unit clamps the cylinder and prints. After printing is completed, the unloading robot B moves to the printing unit to unload the printed cylinder and transport it to the conveyor table, realizing unmanned automation of printing.
Fully reducing the customer's labor costs
Jucolor Autmatic Industry Cylinder Printer is equipped with a large touch screen display. Through the touch screen, PLC programming can be performed to control the automatic loading and unloading robot arm. It supports printing function settings, printing command issuance, cleaning and other functions. It greatly meets customers' requirements for machine usability and maintainability.
Jucolor team has developed a special printing system specifically for the movement characteristics of cylinder printing. The system consists of a motor, a guide rail, a fixture, and a compressor.
It can automatically adjust the inclination, automatically tighten, and automatically lift, etc. It can meet the 360-degree full-format printing of conical cylinders, cylinders, and other anisotropic cones. automatically adjust the inclination to achieve conical cylinder printing, and adjust the height to achieve the printing of bottles of different diameters.
Equipped with 7 independent fixtures, it can achieve cylinder printing with a diameter of 42-135mm. The printing length can reach 300mm, and it can support customization to meet the printing needs of large diameter and long length cylinders.
The system has the characteristics of fast replacement speed, strong versatility, stable operation, and low failure rate.
Industrial-grade power supply system, neat circuit layout, stable, efficient, easy to maintain, with leakage protection function, more safe for the operator
All Lifetime Service
About Jucolor After-sales Service
Jucolor Warranty and service guarrantee:
1.One year warranty, all lifespan service
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free, except for the print head.
3. Convenient online consultation
The technician will keep online, No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
The main printing cost of uv printer is ink cost, 1 liter ink can print 50-65 sqm.
For example, printing an A3 size picture with CMYK+W+V 3 layers, the ink cost is about $0.36, and the A3 size painting for sale online up to $35, the wholesale pricing for as little as $3.
The CJ-UV9012pro uv printer can print about 18 pcs per hour, please think about how profit you can get every hour?
Unsere Kunden sind auf der ganzen Welt. In der UV-Druckerbranche ist JUCOLOR sehr professionell und führend. Wir verlassen uns auf unser solides Fundament und unser starkes After-Sales-Team, um in den Herzen vieler Kunden sehr gute Ergebnisse zu erzielen.
Our products are sold in more than 60 countries on five continents around the world. If you have any needs or doubts, we can give you corresponding praise. You are completely free from worries and can purchase our products at any time.
The printer has 1 year warranty, during this period, any parts are damaged, we will repair and replace new for you, except print head, all shipping cost of after-sale is our responsibility
We established a professional engineers team, we will give you lifetime service. When you get the printer, our engineers team will set up a group to provide you with one on one technical support, guide you how to operate the printer step by step till you use well
Jucolor adopts latest technology, strict quality control for every parts before printer shipment, hope you can get a good cooperation experience with us.
