Jucolor CJ-UVH1319CCD 130cm/4.26′ AI Auto Visual Positioning Industry UV Printer with Conveyor
Jucolor CJ-UVH1319CCD AI auto visual positioning uv printer is an industrial-grade automatic positioning, AI automatic identification and synchronous continuous printing equipment specially designed for customers
uv printer with CCD camera Equipped with latest visual positioning system, high-precision 1200DPI and 8K high-definition camera, forming a powerful image acquisition system. can quickly and accurately identify product contour, realize automatic matching and synchronous continuous printing, without manual intervention throughout the process.
Its physical positioning deviation is precisely controlled within 0.1mm, ensuring accurate printing and delicate and realistic pattern effects, thereby effectively reducing the product scrap rate caused by positioning problems. This uv printer with camera can print different types of products at the same time, successfully solving the problem of positioning special-shaped products, and truly realizing efficient and intelligent batch printing.
| Print heads | RICOH GEN5/GEN6 | Print technology | piezoelectric inkjet print technology |
| Scanning &recognition system | 1200DPI Scanning Vision Solution | Printing table | German high-precision conveyor with built-in adsorption platform |
| Ink color | White,CMYK,LC,LM,Varnish | Ink supply system | Negative ink supply system |
| Print Mode | Scanning and printing together in a circular stepping mode | Print medias: | Insignia Nameplate, Toy, Ruler, Card, Button Cigarette, Key chain, Phone cases |
| Print size | 1300mm* Infinite length | Print height | 15cm ( customizable ) |
| Rip Software | SAI flexiprint | operating system | Window 10/11 |
| Print resolution | 720*900dpi
720*1200di 720*1800dpi |
Print speed: | Draft 4pas 720*600DPI 22.9㎡/h
Production 6pas 720*900DPI 12.25㎡/h Quality 8pas 720*1200 DPI 9.1 ㎡/h High quality 12pas 720*1800DPI 6.12 ㎡/h |

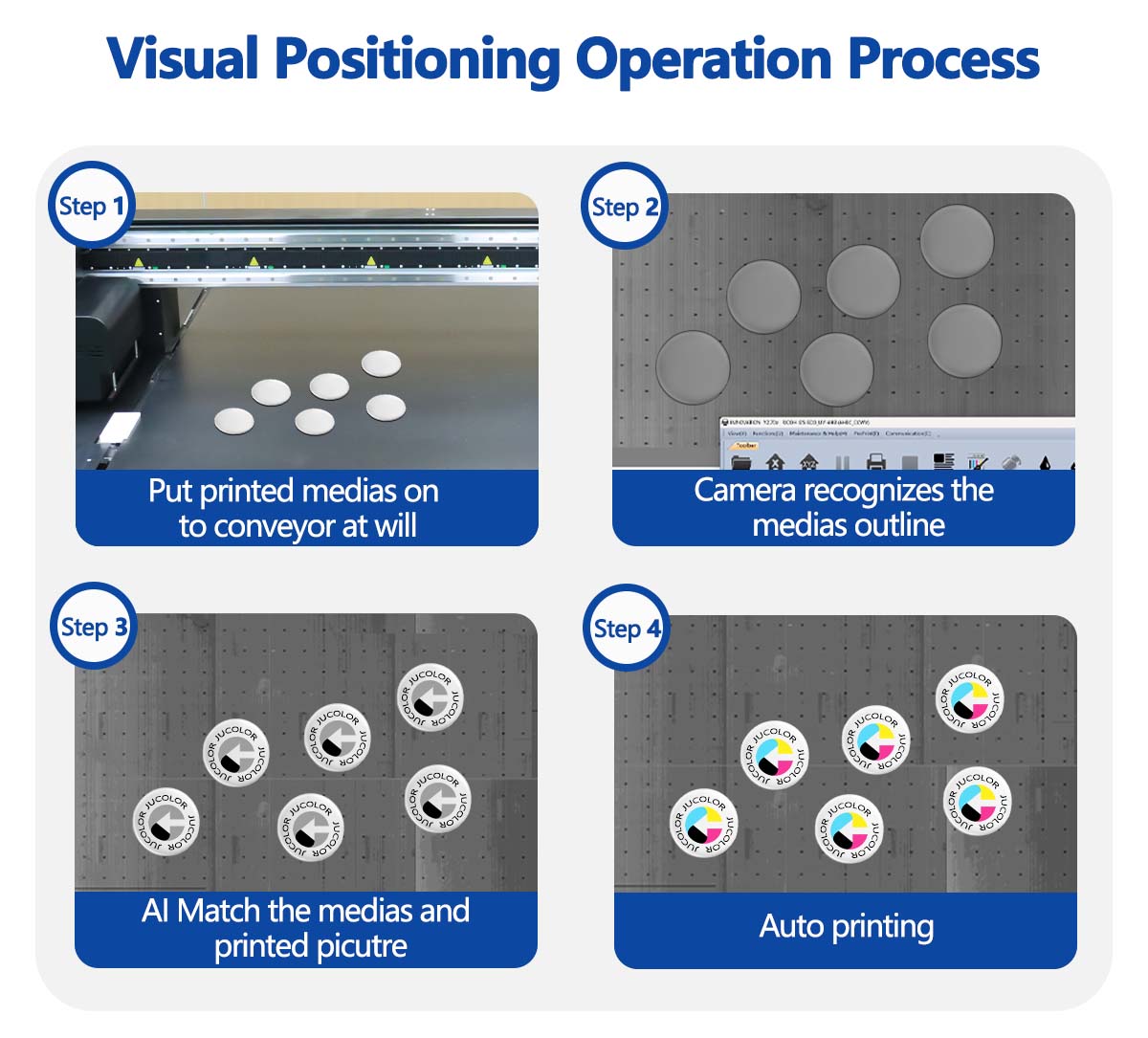

Intelligent identification and positioning say goodbye to molds
Auto Visual Positioning Industry UV Printer with Conveyor can product batch printing automatically identifies and locates and matches printing patterns, saying goodbye to the way of printing product mold positioning. No typesetting is required to improve production efficiency and save the user's mold expenditure cost.
Scanning and printing, continuous printing without stopping
Scanning and printing are carried out simultaneously, avoiding the operation of collecting and releasing materials after printing during the operation of the platform printer, realizing automatic non-stop printing, effectively improving printing efficiency and saving labor costs
No need for positioning and placement, higher production efficiency
Printed medias can be placed at will to reduce labor costs. Compared with the previous printing positioning frame and mold positioning methods, it greatly improves production efficiency and printing capacity.
Solve the problem of positioning special-shaped products
Printing special-shaped products uses the camera to accurately identify the contour of the special-shaped product, and the template in the software is automatically matched with high matching accuracy, saying goodbye to the tedious manual positioning, the problem of poor accuracy, and the scrapping of printed products due to inaccurate positioning.
High-precision 1200DPl and 8K high-definition camera
CCD auto positioning uv printer has Powerful image acquisition system. quickly and accurately identify product contours,realize automatic matching and synchronous continuous printing,without manual intervention throughout the process.
Vacuum Suction Conveyor Belt imported from Germany
Visual Positioning UV Printer has the vacuum suction conveyor belt holds the media steady to
ensure stable visual scanning and printing.
The vacuum system can be turned ON/OFF easily from the control panel bya button.
The conveyor belt is driven by high-performance motor to ensure stable and cyclic running, and continuous material transportation and printing.
This uv flatbed printer with ccd camera Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh Gen6 print head adopts an all-steel structure, which is extremely corrosive, long working life, can work more than 4 years, high stability, greatly reduces maintenance time and cost.
5.0pl , the variable drop technology enables excellent print output quality
According to customers' needs, Jucolor uv ccd flatbed printer can support up to 8 pcs print heads,
Circulation System
The Circulation System can limit the settlement of white ink, Avoid print heads blocked by inks sedimentation, thus greatly prolonging the service life of the print head.
The all-metal secondary ink cartridge
Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate.
Automatic height measuring system
Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing
Static Eliminator
Eliminate static electricity on materials, make ink droplets more stable, and eliminate ink flying problems caused by static electricity
