JUCOLOR Industry Benchtop Digital Cylindrical Printer
CJ-BP360C Cylindrical Bottle Uv Printer Advantages
* Fast printing speed & high production efficiency: it only takes 30-90 seconds to print a bottle, 5-8 times the printing speed of traditional uv flatbed printers, industrial design, high output
*Magnetic levitation/linear motor, fast printing speed, simple structure, precise ink point position, high positioning accuracy, low printing noise
* White +color+varnish color inks printed one pass
* 10-color (white + KCMY, LC, LM, Grey, Red) UV curing ink to achieve instant printing and drying, which can achieve high resolution and color saturation, making the image more vivid and lasting.
* 3D relief effect printing: CJ-BP360C glass Bottle Printer supports 3D relief printing.
* Varnish effect printing: CJ-BP360C Tumbler Water Bottle Printer supports varnish glossy/matte effect printing, traditional printing cant print
* No need to plate making, one piece can be printed
* Almost any color picture can be printed on any color drum
* Support Erlenmeyer flask printing
* Support 360-degree seamless full-coverage printing
Simple operation, user friendly and low maintenance
* Large diameter, large slope, long size cylinder can be printed
| Print model | CJ-BP360C | Print size | Length:0-240/300mm , Diameter:42-145mm, Taper: ≤ 13° |
| Print head | 3-4* EPSON I1600-U1, 3*RICOH GEN5/6 Heads | Ink type & colors | W+CMYK+V/W+kcmyk,lc,lm, Grey+Red color uv led curing ink |
| Print resolution | 720*900 DPI 720*1200 DPI | Printing speed | 50-120 PCS/Hour(According to printing size) |
| bottle type | Straight-through bottle, cone-shaped bottle, cosmetic packaging bottle, wine bottle, car thermos, etc | Environmental requirements | Temperature: 15°C-33°C, relative humidity 30%-70% |
| Languages | English/Chinese | Power | 110 V/ 220 V |
| Ink supply | 1000 ml/bottle | Operating system | Windows 7/10/11 |
| Machine Size | 1320*615*810mm, 155 kg | Packing size | 1450*680*900mm 210kg |
| Delivery | 7 work days after payment | Payment Terms | T/T; bank transfer, Western union |

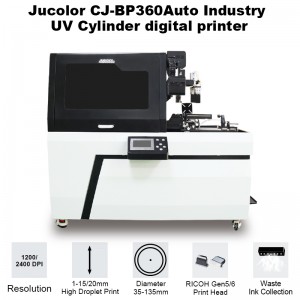

Using Japan's Ricoh MH5320/40 all-metal print head, RicohMHMH5320/40 head adopts an all-steel structure, which has strong corrosion resistance, up to 4-6 years long working life, high stability, which greatly reduces maintenance time and cost, variable droplet technology gives it excellent printout quality,
1-15/20mm High gap printing,
The Jucolor cylinde printer using RICOH MH3440 print heads which can achieve effective 1-15mm high gap function. If use special inkused, the high gap distance can reach to 20mm. Greatly expands users’ business scope

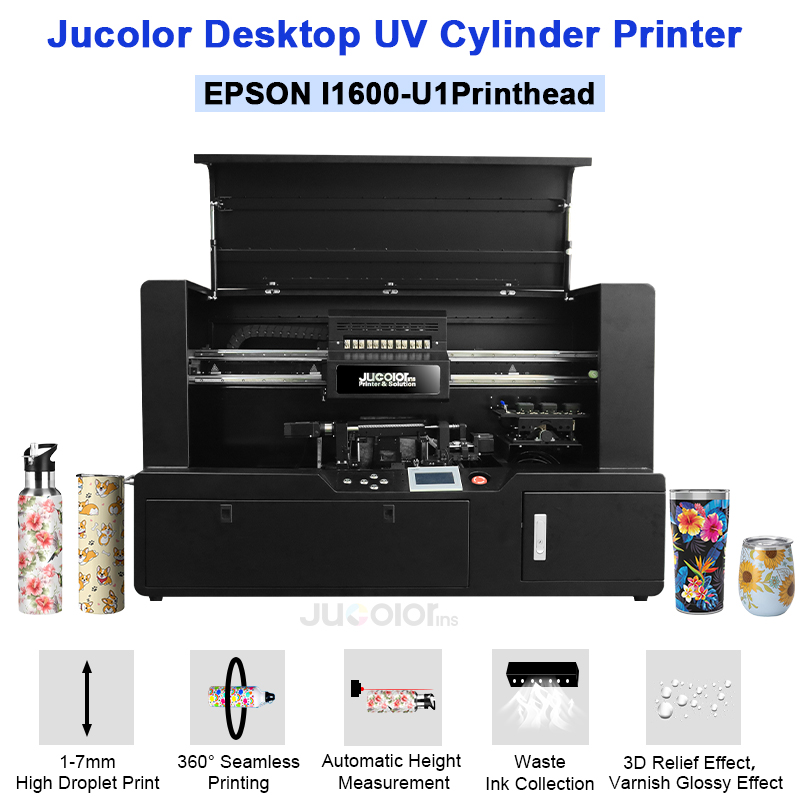

EPSON I1600-U1 professional uv led curing inks print head
Jucolor CJ-BP360C Desktop cylinder Equipped with 3-4 pcs Japan EPSON brand I1600-U1, 3.8pl 1600 nozzles print head,Which is professional for uv inks printing, high quality prinitng out, printing stably and suitable price.
Support 10color: Primer+W+CMYK+V/W+cmyk,lc,lm, Grey+Red color uv led curing ink
1600-u1 heads' high gap printing distance upto 5/7mm, can meet customers' printing needs for normal cylinders and irregular cylinder with Height difference less than 7mm
10-color eco friendly UV curing Ink, including White, KCMY, LC , LM, Grey, Red/LGrey color, delivers bright, colorful, tactile prints with low graininess and smooth gradation.
Variable drop technology, Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess
high quality printing without noticeable banding
Jucolor high-speed rotary printer support:
* 3D relief effect printing
* varnish glossy/matte effect printing, traditional printing does not do this
* Support 360-degree seamless full-coverage printing
Jucolor CJ-BP360C Cylinder printer supports seamless printing
Jucolor cylinder printer software adds seamless splicing algorithm, which can easily achieve seamless splicing effect, just setting bottle size to printer software. It is easy to operate and has amazing effect
According to shape of cylinder and movement characteristics of printing cylinders, Jucolor team designed a professional cylinder fixing tray unit, which can fix and print various cylinders with a diameter of 42-145mm and a length of 0-240/300mm within an inclination of 13degrees. Special Specification cylinders printing requirements can be customized
The fixed unit has the characteristics of quick fixture replacement, strong versatility, stable operation, and low failure rate.
Magnetic levitation/linear motor
This Jucolor CJ-BP360C Cylinder printer uses a linear motor, which has a long trouble-free working time, fast printing speed, simple structure, precise ink point position, high positioning accuracy, easy maintenance, low printing noise, and fast response speed.
Magnetic Encoder Strip:
Provides very high position detection accuracy, non-contact measurement will not reduce accuracy due to wear, strong anti-fouling ability, low failure rate, long service life, easy installation and maintenance.
High performance uv led ink curing lamp
According to the characteristics of rotary inkjet printing, we choose a high-power single lamp, which can effectively fix the ink in time, and the irradiation length can be adjusted to adapt to cylinder printing of different lengths. Through water cooling, it has the characteristics of long working life.
