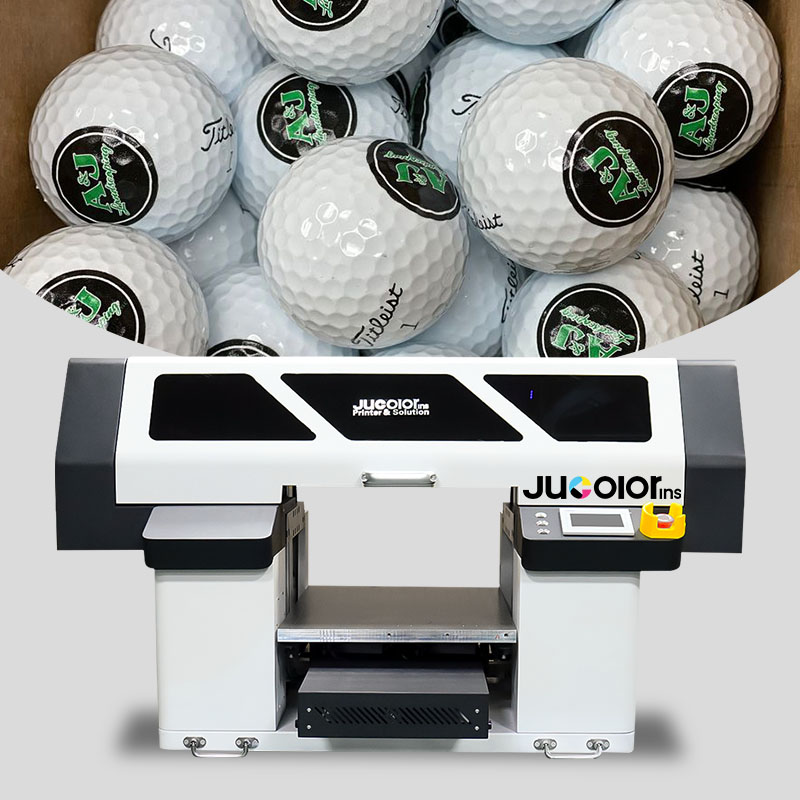

Jucolor A2+ industry UV LED Printer with AI CCD camera
Jucolor CJ-UVF6042Pro-Ⅲ is an economy Desktop, small size industry UV-LED flatbed inkjet printer offered and develop by Jucolor Group. Equipped with industrial RICOH MH5420 metal grayscale print heads, this uv flatbed printer is ideal cost-effective solution for personalized souvenirs, customized gifts, advertising printing, , Industrial production,and special promotional materials. can print high thickness medias with high quality printing out, high drop printing, less maintenance, Flexible printing. Jucolor UVF6042Pro can print vivid colors and fine details at the same time by high quality uv curing ink, CMYK and white, eye-catching varnish color inks, can print out bright glossy, matte, tactile prints with low graininess and smooth gradation. 3D embossed effect
|
Jucolor CJ-UVF6042Pro-III 43*65cm/ 16.9*25’’ Desktop A2 size Industry UV LED Printer |
|||
| Model |
CJ-UVF6042Pro-III |
Ink type |
UV Led curing ink |
| Print head |
RICOH MH5440 Industry heads (Gen5/6） |
Ink color |
W+CMYK+V |
| Print size |
43*65cm/ 16.9*25.5’’ |
Print height |
25.6cm/10 inches |
| Print Heads |
1/2/3 |
Cartridge Capacity |
500 ML each color, lack of ink alarm,White Ink Stirring |
| Ink supply system |
Negative ink supply system |
Print head Moisturizing |
available |
| White ink circulation |
White ink circulation ink ink tube and second ink cartridge, |
Consumption |
15ml/sqm |
| Printing medias |
Metal, Acrylic,PVC, TPU, Canvas, Glass, Acrylic, Wood, Metal, PVC,Plastic,Ceramic,Leather, PP, PE, PTFE… etc |
||
| Resolution |
720*600DPI, 720*900DPI,720*1200DPI |
||
| Power Supply |
50/60Hz, 110V/220V±20，750W |
Working temperature |
16℃-30℃（62℉-86℉） |
| RIP software |
RIP Print/SAI flexi print 22 |
Working humidity |
40%-60% |
| Printer size |
135*115*75cm, 145 KG |
Packing size |
145*125*135cm, 235KG |
Jucolor CJ-UVF6042Pro-III industry uv printer uses Japanese Ricoh Gen5 steel industrial print heads. MH5440(GEN5) adopts all-steel structure and is well-known for its strong working stability. The ultra-long working life can reach 4-6 years, which greatly reduces maintenance time and cost. The variable drop technology makes it have excellent print output quality. The 54.1mm effective printing width enables the printer to obtain a much faster printing speed than the EP SON head printer. Compared with the EP SON series heads, lower comprehensive use cost, higher output , less maintenance time and cost, user can have more time for production instead of maintenance.
High-drop printing upto 15/20mm Jucolor 6042 uv printer with RICOH MH5440 Gen5 metal industry print heads can achieve an effective printing gap of 3-15mm. with special ink the high-drop distance can reach to 20mm. High-drop printing function is very practical and popular. It can effectively print toys, cosmetic packaging, tools, pens, special parts and other irregular shapes or uneven surfaces. The application range is extremely wide. expands the user's business scope
White Ink Circulation & Stirring System We equip CJ-UVF6042Pro with a negative pressure ink supply system, which includes: primary ink cartridge, ink tube, secondary ink cartridge, and negative pressure generator. We added a stirring system to the primary ink cartridge to continuously stir the ink, and added a circulation system to the ink tube and secondary ink cartridge. The ink can flow in the ink tube and secondary ink cartridge to prevent white ink from settling, avoid the print head being clogged by ink precipitation or white printing being yellowish, and improve the quality of white ink printing.
Stable printing mainboard and system Jucolor CJ-UVF6042Pro-III A2+ industry uv printer equipped with professional printing mainboard and system, has the characteristics of high-quality output, multi-function printing, efficient printing, easy maintenance and simple operation. Support, White+CMYK +Varnish inks print one psss. 15/20 mm max high droplet printing function. 3D embossed printing, varnish inks glossy effect printing Industrial grade circuit wiring process New industrial-grade circuit wiring process, strong and weak electricity separation, to avoid interference, international famous brand electrical accessories, durable, Each group of lines is marked for easy maintenance and inspection
Negative pressure ink supply system
Negative pressure ink supply system, ink can be directly injected into the print heads, no need to suck print heads, ink supply is more stable, effectively avoid problems such as ink interruption during printing
All-metal secondary ink cartridge
Excellent corrosion resistance, UV ink is a corrosive chemical liquid. Therefore, the corrosion resistance of the secondary ink cartridge is very important, it can effectively extend the service life. Avoid high failure rate and high maintenance rate
Capping station with auto-wiper
Print heads are more expensive, need to protect and keep moisturizer well. So jucolor team develop own auto cap station with wiper for RICOH GEN5 heads on jucolor A2+uv printer, it can clean automatically, wiper print head automatically, keep print head moisturizer. (head storage when in stand by) Very useful to avoid clogging.
Anti-collision and light-avoidance system
Jucolor's independently developed large-width, highly sensitive printhead anti-collision and light-avoidance system. Effectively prevent the printhead from being damaged. When the material is higher than printhead surface, the sensor will stop printhead from moving. After adjusting the height, the software will continue printing to avoid wasting printing materials.
The device is located center of printhead and UV lamp. and sensor height is lower than the printhead surface height, which can effectively shield the reflected light, protect the printhead, avoid the printhead from being blocked due to reflection.
High-Precision (1um) Magnetic Grating
Jucolor CJ-UVF6042Pro A2+ industry uv printer adpot High-precision (1um) magnetic grating counting ruler+ High-precision Hiwin ball screw guide transmission control system, Compared with linear grating, magnetic grating has better durability, stability, and longer service life, and does not need to be replaced.
Our research found that when customers use linear grating printers, the print head will shake and the software cannot read the position of the print head. These are caused by the linear grating being not resistant to dirt, easy to misalign, and poor stability. We use the magnetic grating equipped with large uv printers to effectively avoid these problems and enhance the working stability of the printer. Users do not need to frequently troubleshoot printer failures.
accurate positioning, completely solve the problem of inaccurate counting and printing failure caused by frequent worn or position deviation of traditional plastic encoder deviation of traditional plastic encoder
Hiwin ball screws are known for their high precision, low wear, easy maintenance, and high rigidity, which can effectively keep the printer printing with high precision for a long time
Laser height measurement and anti-collision system
JucolorCJ-UVF6042Pro-III desktop industrial UV printer uses laser sensor to detect the thickness of the printing material, effectively ensuring that the distance between print head and printing material is within a safe range, avoiding contact or collision between the print head and the material, causing damage to the print head.
Supports bidirectional printing, no need for customers to recalibrate the bidirectional settings due to changes in the bidirectional value caused by changes in the printing height
Jucolor CJ-UVF6042Pro Details
*45*65cm Anti-scratch Teflon coated vacuum suction platform with size mark, Engraved ruler can quickly locate the printing position Anti-scratch, anti-greasy, anti-corrosion, With adsorption function, can firmly adsorb and fix printing material during printing process to avoid printing misalignment
* well-designed touch screen, easily adjust platform, do head cleaning, control printer, control the platform for Backward, Forward, Up, Down, Pause/Stop, Online/Offline and ink cleaning, print head test, let you operate the machine more convent
* Heavy duty stainless steel screw driver Stable operation, long time lifespan, wear-resistant, not easy to damage, can support bi-diection printing
* printer body& frame made by Cast aluminum alloy
*High performance uv led curing lamp, working time exceeds 40,000 hours, two-year warranty
reliability, which effectively ensure printing accuracy and working stability.
* Servo motors have the characteristics of high precision, fast response, high efficiency, and high reliability, which effectively ensure printing accuracy and working stability.
