Jucolor Newest Large 2513 UV Flatbed Printer Digital Printing on Advertising Sign Wooden UV Printer

Short Description:

* RICOH GEN6(MH5320) stainless steel industry print heads
* 10-color White+CMYK+LC, LM, Grey, Lgrey/Red+Varnish
* Photo-level printing out
* AI Auto-Visual Positioning system
* Magnetic grating, more accurate printing and lower failure rate
* 15/20 mm max high gap printing
* 245*125cm/8*4ft print size, 15cm/5.9″ print height
* Varnish glossy & matte printing
* Faster printing
* US SAI flex print rip software
* Variable droplet technology minimizes graininess

Printer name : Jucolor 2513 10-COLOR large format uv flatbed printer

Model: CJ-UVF2513Pro-10C

Print head: RICOH MH5340 Industry heads (Gen6)

Ink color: CMYK, LC,LM,Grey, LGrey/Red White, Varnish

Print size: 245*125cm/8*4ft

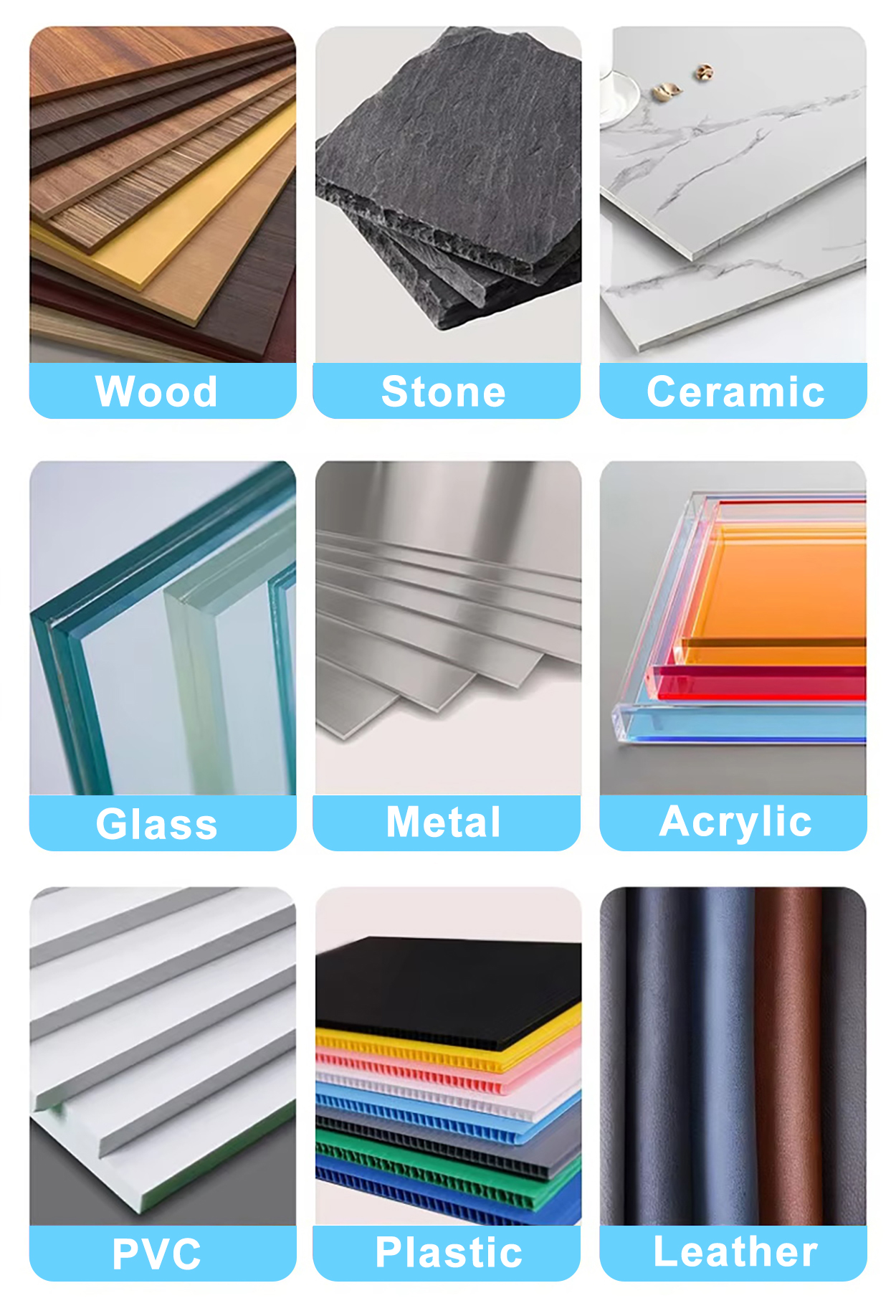

Printing medias: Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc

Resolution: 600DPI, 900DPI,1200DPI,

High droplet: 15/20mm max high droplet printing

Send Email Chat Now

Product Detail

CJ-UVF2513Pro-10C
10-color 8*4’/245*125cm large format uv flatbed printer
Jucolor 8*4 ft uv printers uses industry printing main board system, achieve superb prints on almost any kind medias with Gorgeous colors
3.High accurate printing
This 2513 large format uv printer Original RICOH Gen6 MH5340 industry print heads Adopt variable droplet technology for accurate print quality, Double Japan THK guide rail,Magnetic levitation linear motor effectively improve printing accuracy
3. Incredible huge production speeds
4/6/12 PCS RICOH Gen6 MH5340 print heads are acceptable to provide high volume outstanding-quality prints with true huge production speed.
4.medias thickness upto150mm
Automatically detects and adjusts to accommodate up to 150mm thick for virtually endless printing possibilities
5.Flexible printing
Print directly on various hard or soft materials, such as glass, wood, acrylic, wood panel, PVC, paper, leather, banners, metal, billboards, etc.
6.Multifunctional printing
Accept white + Color+ varnish inks printing one pass, Colors+white+Colors inks printing, Colors + white ink mirror printing, 3D embossed printing, varnish gloss printing, Varnish matte printing, independent halo printing head can freely control the printing effect, while gloss printing can provide eye-catching effect for unparalleled design.
7.Safe printing
Equipped with automatic height measurement system, Print heads anti-collision system, accurate measure print height, support bi-directional printing, print heads anti-collision system, effectively avoid print heads damage by hit or touched material
8.High-stability printing
Industrial-grade design, one-piece molding body, negative pressure ink supply system, magnetic levitation linear motor, Japanese THK guide rail, metal magnetic grid ink dot positioning, double Servo Motor keep machine with high working stability.

Application

CJ-UVF2513Pro-10C *10-color 84’/245125cm large format uv flatbed printer*
Model	CJ-UVF2513Pro-10C	Ink type	Uv led curing ink
Print head	RICOH MH5340 Industry heads (Gen6)	Ink color	CMYK, LC,LM,Grey, LGrey/Red,White, Varnish
Print size	245125cm/84ft	Print height	15cm/5.9’’
Numbers of print heads	4/6/12	Cartridge Capacity	1000 ML each color, lack of ink alarm,White Ink Stirring
Printing medias	Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc
Printing speed	Print head amount	4 PCS	6 PCS
	Draft	18 ㎡/h	36.75㎡/h
	Production	11.4㎡/h	22.96㎡/h
	Quality	9.15㎡/h	18.3㎡/h
	High quality	6.12㎡/h	12.25㎡/h
Resolution	600DPI, 900DPI,1200DPI
Power Supply	50/60Hz, 220-240V 5KW	Working temperature	16℃-30℃（62℉-86℉）
RIP software	SAI flexi print	Working humidity	40%-60%
Printer size	417521651420mm,1500KG	Packing size	445022501560mm, 2250KG

_{Jucolor 8*4ft large format uv printer Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh MH5340 Gen6 print head adopts an all-steel structure, which is extremely corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.}

_{5.0pl , the variable drop technology enables excellent print output quality}

_{According to customers' needs, Jucolor 2513 uv printers can support up to 12 pcs print heads,}

jucolor uv printer use Variable drop technology, Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess
high quality printing without noticeable banding

10-COLOR Photo level printing quality
White+KCMY, LC, LM, Grey, Lgrey/Red+Varnish color uv led curing ink
10-color eco friendly UV curing Ink, including White, KCMY, LC , LM, Grey, Red/LGrey color, delivers bright, colorful, tactile prints with low
graininess and smooth gradation.

Variable drop technology, Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess

Layout of print heads
* Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh Gen6 print head adopts an all-steel structure, which is extremely.
* corrosive, long working life, can be more than 4-5 years, high stability, greatly reduces maintenance time and cost.
* 5.0pl , the variable drop technology enables excellent print output quality.
* According to customers' needs, Jucolor 2513Pro-10 uv printers can support up to 12 pcs print heads.

Magnetic levitation linear motor

* Jucolor 2513 Gen6 print head printer adopts linear motor, reliable and long life, fast printing speed, simple structure, accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running time without wear.

* Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the customer's requirements for printing speed. * Low noise effectively alleviate noise in working environment, reliable and long life can effectively reduce replacement cost.

Circulation System

The Circulation System can limit the settlement of white ink, Avoid print heads blocked by inks sedimentation, thus greatly prolonging the service life of the print head.

Hard oxide adsorption platform with automatic positioning function
Jucolor 2513 printers use Hard-oxidized honeycomb-hole sub-chamber adsorption platform has strong adsorption capacity, which can
effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensure
high-precision printing output, avoid print heads scraping caused by material warping. Damage problem, adsorption area can be
adjusted at will, platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean.

Pin Position System
Easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials.
Auto Thickness Sensor
Pin sensor to measure thickness upto 15cm/5.9inch

Four wind zone design

With this design, The area that needs suction can be opened at will, and the application is more flexible
Adopt a new four-pipe process, simplify the pipeline, and the suction force is not reduced.

Automatic height measuring system

Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing

automatic collision avoidance system

Jucolor 2513 uv printer equipped anti-collision system for print head. This anti-collision system sensors are equipped on both sides of printing system. When safety of print heads are threatened, this system will stop printing directly, effectively protecting print head from being damaged.

Y-axis dual servo motor drive

For Y axis, we use dual motor drive. Compared with single motor, dual motor has a simpler structure,running directly, no need belt, avoids the poor accuracy of belt drive, the failure rate is high, drive more accurate, and failure rate is lower.
